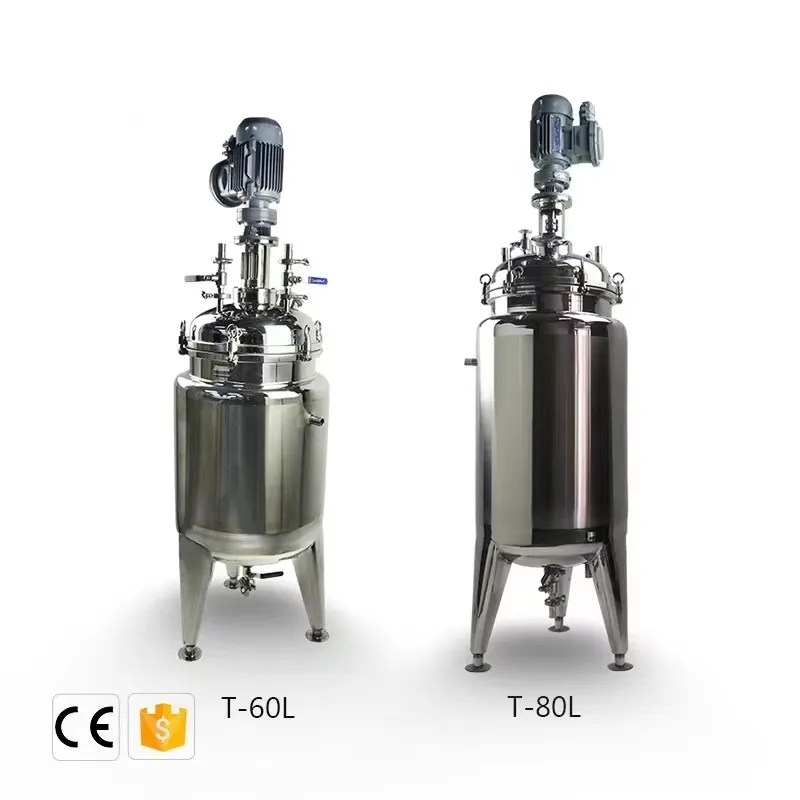

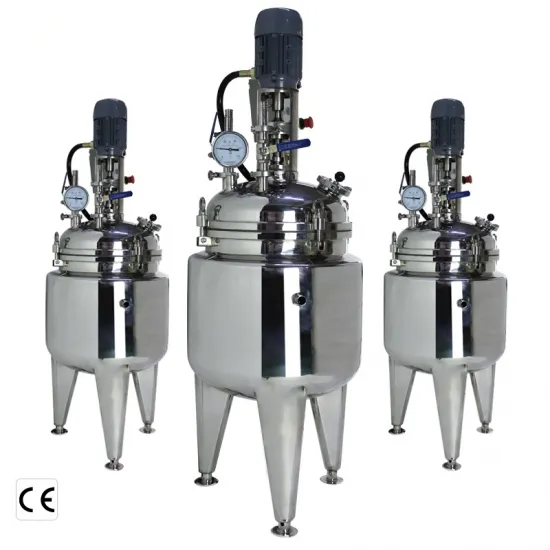

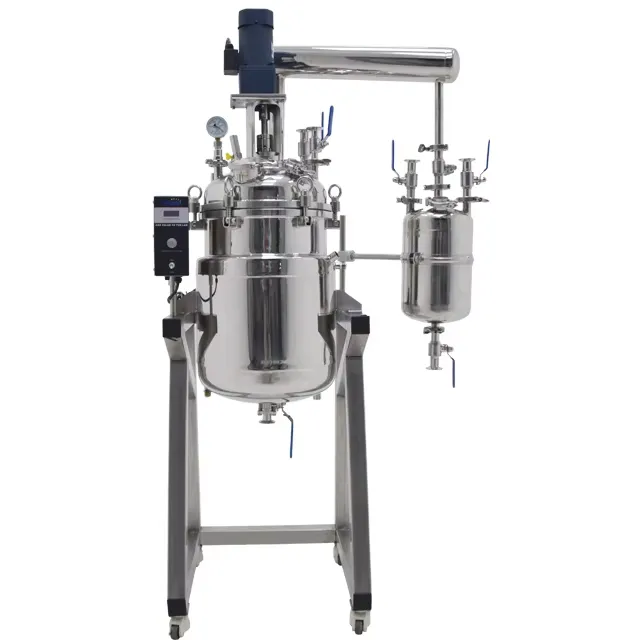

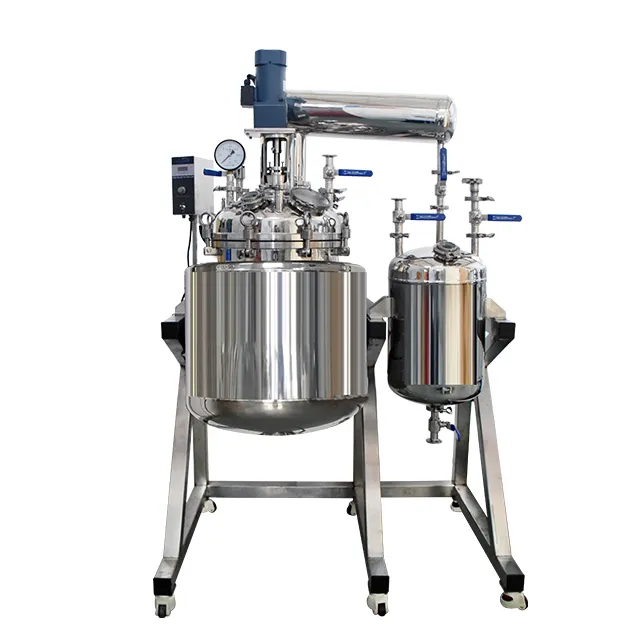

Portable Stainless steel Pressure Chemical Reactor Kettle
Stainless steel reaction vessel (also known as stainless steel reactor) is a pressure vessel designed for mixing, synthesis, reaction, concentration and emulsification. The main body adopts food or industrial grade 304 / 316L stainless steel. It is equipped with jacket for heating or cooling by thermal oil, steam or cooling water. Mechanical agitator is fitted to ensure uniform mixing. Optional accessories include mechanical seal, sight glass, CIP Cleaning System and automatic control cabinet. Available for atmospheric or pressure working conditions. Widely applied in food, pharmaceutical, chemical and bio-fermentation industries.
PRODUCT DESCRIPTION
Description
Stainless steel reaction vessels are among the most widely used core process equipment in industries such as chemicals, pharmaceuticals, and food, valued for their excellent comprehensive performance in handling various processes including mixing, reaction, synthesis, extraction and concentration.
Based on the heating/cooling method, they can be categorized into electric heating, hot water heating, thermal oil circulation heating, far-infrared heating, external (internal) coil heating, jacket cooling, and internal coil cooling, among others. The selection of the heating method primarily depends on the required heating/cooling temperature for the chemical reaction and the amount of heat needed. According to the vessel material, reaction vessels can be classified into carbon steel reaction vessels, stainless steel reaction vessels, glass-lined reaction vessels (enamel reaction vessels), and steel-lined reaction vessels.
Core Materials and Characteristics
Corrosion Resistance: This is a key advantage. Commonly used materials include 304 stainless steel (general-purpose) or 316/L stainless steel (enhanced corrosion resistance, especially suitable for media containing chloride ions), capable of withstanding various acids, alkalis, and chemical materials.
High Cleanliness: Features a smooth, dense surface that is non-shedding, easy to clean, and sterilizable, fully complying with stringent hygiene standards such as GMP and FDA.
Mechanical Properties: Offers good strength and toughness, capable of withstanding certain pressures and temperature variations, ensuring a long service life.
Advantages & Features
Offers operational convenience and flexibility, supporting batch, semi-batch, or even continuous operation based on specific process requirements.
Temperature is easily controlled, and the production duration can be adjusted according to different industrial needs, allowing for relatively easy control of the reaction rate.

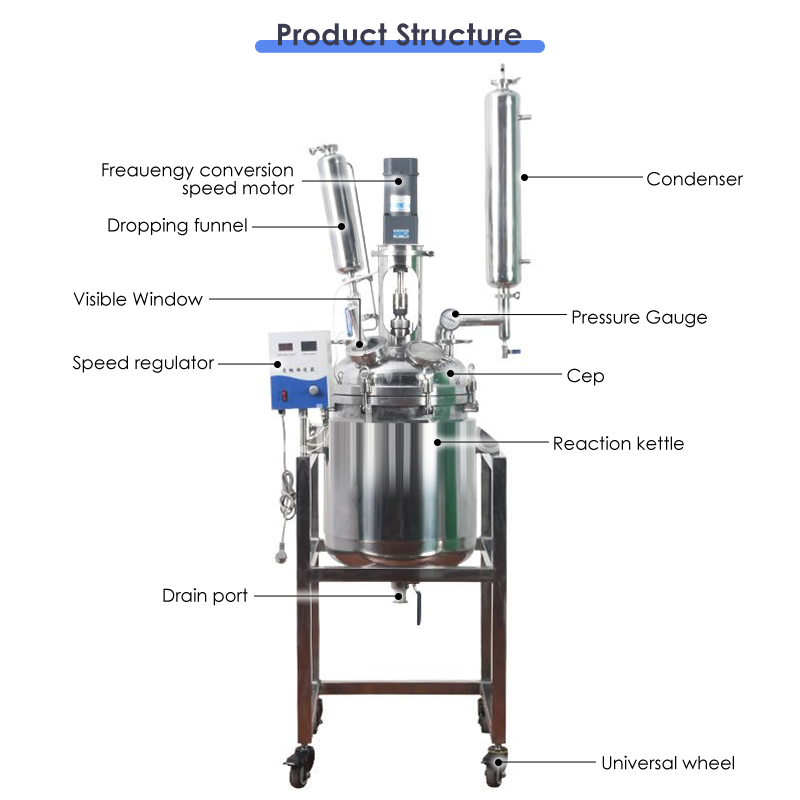

Application and Structure:
The Automatic Customized Chemical Stainless Steel Stirred Tank Reactor can be used as a retort in the medicine, chemical, and bio-engineering field. This equipment mainly consists of a canister body, whole jacket, and outer wrapping layer; heat preservation material is between the outer wrapping layer and jacket. It is with an agitator on the top of the reactor.
<<Quick open manhole.
<<Various types of CIP cleaners.
<<Fly and insect resistant sanitary breathing cover.
<<Adjustable triangular bracket.
<<Dismountable materials input pipe assembly.
<<Thermometer (According to customer requirements ).
<<Ladder (According to customer requirements).
<<Liquid level meter and lever controller (According to customer requirements).
<<Easy to discharge, bottom direct discharge or by transfer pump.
Technical Parameters
Chemical Reactor Tank |
Profile/type | Single layer tank | Double layer tank | Three layer tank |
Material | SS304 or SS316L |
Volume | 50L-30T (Customized) |
Pressure | Vacuum-1Mpa |
Tank Type | Vertical type/Horizontal type/Mobile type |
Structure | one layer | Inner layer+jacket | inner layer+jacket+insulation |
heating way | Electric/Steam Heating |
Inside Finsh | Mirror polished Ra<0.4um |
Outside Finish | 2B or Satin Finish |
Stirrer type | impeller, Anchor , Turbine , High shear, magnetic mixer, Anchor mixer with scraper |
|
Power | 0.55~55KW |
Voltage | 110V~480V |
Top Head type | Dish top, Open lid top, Flat top |
Bottom type | Dish bottom, Conical bottom, Flat bottom |
PARTS DETAILS | 1.Quick open manhole / Pressure manhole |
2.Various types of CIP cleaners |
3.Sterile respirator |
4.Adjustable Legs |
5.Inlet and Outlet sanitary valve |
6.Thermometer (According to customer requirements ) |
7.Paddle blender .(According to customer requirements) |
8.Liquid level meter and lever controller (According to customer requirements) |
9.Ladder |
Application | Food, Beverage, pharmacy, biological,honey, chocolate, alcohol ,chemical industry etc |
We can customize the equipment according to customer requirements. |
Related Products
FAQ
Q: What kind of company are you?
A: We are a manufacturer and a trader, with more than 15 years of experience in the food brewery industry. We have been committed to the research and innovation of brewing machinery manufacturing to continuously follow the market demand. This is why we can provide high quality and different types of products at competitive prices.
Q: Could you please introduce your after-sales service?
A: We can provide one-year warranty, online video technical support, etc. All we have to do is to meet your needs and solve your problems.
Q: What are your payment terms?
A: Currently, we can accept wire transfers and letters of credit.
For any questions you don't understand, please feel free to contact me.
Industrial Stainless Steel Reactor with Safety Controls & Ergonomic \Portable Stainless Kettle (Optional Whistle): Complete Industrial Guide
The Industrial Stainless Steel Reactor with Safety Controls & Ergonomic Portable Stainless Kettle (Optional Whistle) is a highly versatile processing system widely used in modern industrial manufacturing, food production, bio-extraction, pharmaceutical formulation, chemical processing, and laboratory-scale production.
With the global demand for hygienic, safe, and highly controllable thermal processing equipment, stainless steel reactors have become essential components in industries requiring:
·
Controlled heating and cooling
·
·
Chemical or biochemical reactions
·
·
Mixing and blending operations
·
·
Sterilization and thermal processing
·
·
Portable small-batch production
·
These systems combine durability, corrosion resistance, safety automation, and ergonomic mobility, making them suitable for both large-scale industrial plants and small production environments.
The addition of optional whistle safety indicators, advanced pressure control systems, and portable kettle design enhances usability, making this equipment adaptable across multiple industries.
2. What Is an Industrial Stainless Steel Reactor?
An Industrial Stainless Steel Reactor is a closed or semi-closed vessel made from high-grade stainless steel designed to facilitate controlled chemical, thermal, or biological reactions under regulated conditions.
It integrates multiple functions:
·
Heating and cooling control
·
·
Pressure regulation
·
·
Mixing or agitation systems
·
·
Safety monitoring systems
·
·
Hygienic processing environment
·
Core Definition:
A stainless steel reactor is a precision-engineered industrial vessel designed to maintain controlled reaction environments with high safety, stability, and efficiency.
3. What Is an Ergonomic Portable Stainless Steel Kettle?
A Portable Stainless Steel Kettle is a mobile processing container designed for small-scale heating, mixing, or reaction tasks. It is widely used in:
·
Pilot production lines
·
·
Small batch food processing
·
·
Laboratory testing
·
·
Mobile production setups
Key Features:
·
Lightweight and portable design
·
·
Easy handling and mobility
·
·
Stainless steel hygienic construction
·
·
Optional whistle indicator for pressure or boiling alerts
·
·
Ergonomic handles and safety grips
·
4. Working Principle of Industrial Stainless Steel Reactor
The working principle is based on controlled thermal energy transfer and reaction environment management.
Step-by-step process:
1. Loading Phase
Raw materials such as liquids, powders, or semi-solid mixtures are introduced into the reactor.
2. Heating Phase
Heat is applied through:
·
Electric heating jackets
·
·
Steam heating systems
·
·
Thermal oil circulation
·
3. Reaction Phase
Materials undergo:
·
Chemical reaction
·
·
Fermentation
·
·
Mixing or blending
·
·
Sterilization
·
4. Temperature Control
Sensors maintain stable conditions with ±0.5°C accuracy.
5. Cooling Phase
Cooling systems stabilize product after reaction completion.
6. Discharge Phase
Final product is discharged or transferred to storage systems.
5. Key Features of Stainless Steel Reactor System
·
High-grade stainless steel construction (SS304 / SS316)
·
·
Integrated safety control system
·
·
Pressure and temperature monitoring sensors
·
·
Optional whistle alarm system
·
·
Ergonomic portable kettle design
·
·
Corrosion-resistant internal structure
·
·
Energy-efficient heating system
·
·
Automated or manual control modes
·
6. Safety Control Systems
Safety is a critical component of industrial reactor design.
Table 1: Safety Control Features
Safety Feature | Function |
Pressure Relief Valve | Prevents overpressure accidents |
Temperature Sensor | Maintains thermal stability |
Emergency Shutdown System | Stops operation in unsafe conditions |
Whistle Alarm System | Provides audible warning signals |
Dry Heating Protection | Prevents heating without liquid |
Electrical Grounding | Prevents electric shock |
Overload Protection | Protects electrical components |
7. Ergonomic Design Features
The ergonomic portable stainless steel kettle is designed for ease of use and operator comfort.
Key Ergonomic Advantages:
·
Heat-resistant handles
·
·
Anti-slip base design
·
·
Lightweight structure
·
·
Easy tilting or pouring system
·
·
Compact mobile configuration
·
·
Safe grip insulation
·
These features reduce operator fatigue and improve production efficiency in small-scale operations.
8. Heating Systems in Stainless Steel Reactor
8.1 Electric Heating System
·
Fast response time
·
·
Precise temperature control
·
·
Suitable for small and medium reactors
·
8.2 Steam Heating System
·
Uniform heat distribution
·
·
Suitable for industrial-scale operations
·
8.3 Thermal Oil Heating System
·
High temperature stability
·
·
Used in chemical and pharmaceutical industries
·
9. Cooling Systems
Cooling is essential for controlling reaction termination.
Cooling Methods:
·
Water jacket cooling
·
·
Glycol circulation cooling
·
·
Coil internal cooling
·
Benefits:
·
Prevents overheating
·
·
Stabilizes product quality
·
·
Improves process control
·
10. Technical Specifications
Table 2: Industrial Reactor Specifications
Parameter | Range |
Capacity | 10 L – 20,000 L |
Material | SS304 / SS316 |
Operating Pressure | Atmospheric – 6 bar |
Temperature Range | 0°C – 200°C |
Heating Method | Electric / Steam / Oil |
Cooling System | Jacket / Coil |
Control System | Manual / PLC / Digital |
Agitation Speed | 0–300 RPM |
Portability | Small unit mobile design |
Safety System | Multi-level protection system |
11. Advantages of Stainless Steel Reactor System
Table 3: Key Advantages
Category | Advantage |
Hygiene | Food-grade stainless steel prevents contamination |
Durability | Long service life and corrosion resistance |
Safety | Multi-layer protection system |
Flexibility | Suitable for multiple industries |
Efficiency | Fast heating and cooling cycles |
Mobility | Portable kettle design available |
Automation | PLC-based intelligent control |
Maintenance | Easy cleaning and low maintenance cost |
12. Industrial Applications
12.1 Food Processing Industry
·
Sauce preparation
·
·
Syrup heating
·
·
Dairy processing
·
·
Flavor mixing
·
12.2 Pharmaceutical Industry
·
Chemical formulation
·
·
Sterile mixing
·
·
Active ingredient processing
·
12.3 Chemical Industry
·
Reaction synthesis
·
·
Polymer processing
·
·
Catalyst mixing
·
12.4 Beverage Industry
·
Fermentation processes
·
·
Flavor extraction
·
·
Beverage blending
·
12.5 Laboratory Use
·
Pilot testing
·
·
Experimental reactions
·
·
Sample production
·
13. Portable Stainless Steel Kettle Applications
Portable kettles are widely used in:
·
Small food production workshops
·
·
Mobile beverage production units
·
·
Research laboratories
·
·
Craft product manufacturing
·
·
Field testing operations
·
14. Optional Whistle Safety System
The optional whistle system acts as an audible safety and operational indicator.
Functions:
·
Alerts when boiling temperature is reached
·
·
Warns of pressure buildup
·
·
Provides manual safety feedback
·
·
Enhances operator awareness
·
Benefits:
·
Low-cost safety enhancement
·
·
Simple mechanical operation
·
·
No electronic dependency
·
·
Useful in small-scale production environments
·
15. Material Selection
Table 4: Stainless Steel Material Comparison
Material | Features | Application |
SS304 | Standard food-grade steel | General industry |
SS316 | Corrosion-resistant | Chemical & pharma |
SS316L | Ultra-clean sterile grade | Biotechnology |
Carbon Steel | Structural use only | External frames |
16. Automation and Control Systems
Modern reactor systems use advanced automation:
·
PLC control panels
·
·
Touchscreen interfaces
·
·
Temperature feedback systems
·
·
Automatic pressure regulation
·
·
Alarm and safety shutdown systems
·
·
Data recording modules
·
17. Energy Efficiency
Industrial stainless steel reactors are designed for low energy consumption:
·
Heat insulation reduces energy loss
·
·
Efficient heat transfer systems
·
·
Optimized heating cycles
·
·
Automated shutdown reduces waste
·
18. Cleaning and Maintenance (CIP System)
CIP (Clean-in-Place) systems ensure hygiene without disassembly.
Functions:
·
Internal washing cycles
·
·
Chemical cleaning
·
·
Sterilization processes
·
·
Pipeline flushing
·
19. Installation Requirements
To ensure safe operation:
·
Stable power supply
·
·
Water or steam source
·
·
Proper drainage system
·
·
Ventilation space
·
·
Grounding system
·
·
Temperature-controlled environment
·
20. Common Operational Issues
Problem | Cause | Solution |
Temperature instability | Sensor error | Recalibration |
Slow heating | Scale buildup | Clean heating surface |
Leakage | Seal wear | Replace gasket |
Poor mixing | Motor failure | Repair agitator system |
21. Market Trends
The global stainless steel reactor market is expanding due to:
·
Growth of food processing industries
·
·
Rising demand for pharmaceutical production systems
·
·
Expansion of small-scale portable manufacturing units
·
·
Increasing automation in industrial processing
·
·
Demand for hygienic and corrosion-resistant equipment
·
22. Future Development Trends
·
Smart IoT-enabled reactors
·
·
AI-based temperature control
·
·
Energy recovery systems
·
·
Fully automated production lines
·
·
Modular portable reactor systems
·
23. Comparison: Industrial Reactor vs Portable Kettle
Feature | Industrial Reactor | Portable Kettle |
Capacity | Large-scale | Small batch |
Automation | High | Medium |
Mobility | Fixed | Portable |
Application | Industrial production | Pilot / small scale |
Cost | High | Low to medium |
24. Environmental Benefits
·
Reduced energy consumption
·
·
Lower emissions (electric systems)
·
·
Efficient resource usage
·
·
Sustainable manufacturing support
·
25. Conclusion
The Industrial Stainless Steel Reactor with Safety Controls & Ergonomic Portable Stainless Kettle (Optional Whistle) represents a highly flexible and advanced solution for modern industrial processing. It combines precision temperature control, safety automation, hygienic stainless steel design, and portable functionality, making it suitable for a wide range of industries.
From large-scale chemical processing to small-batch food production, this system provides efficiency, safety, and operational flexibility, aligning with the future direction of smart manufacturing and sustainable industrial development.
+86 29-87031531
Phone
