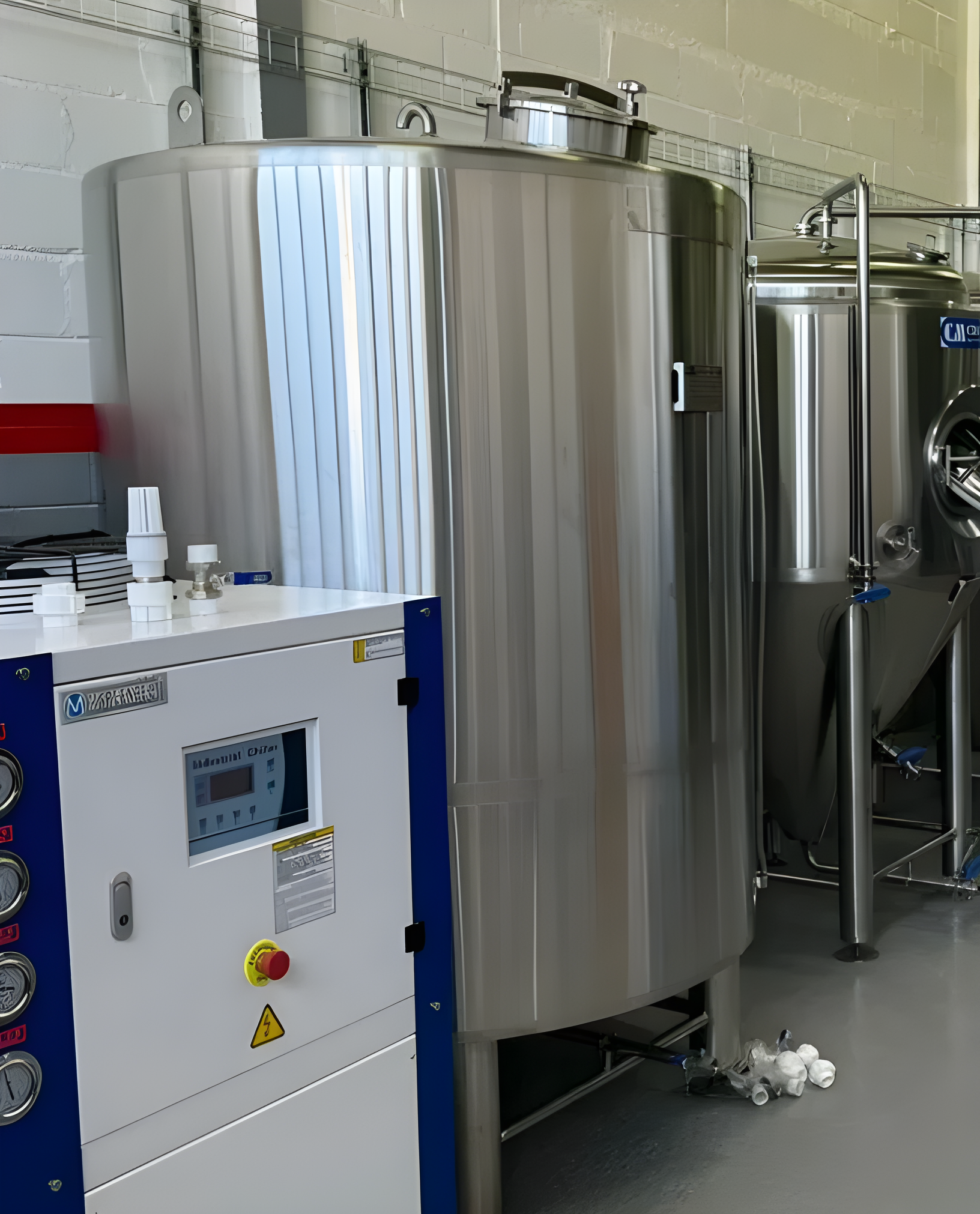

Double-layer heating  cooling storage mixing tank

Double-layer cooling-heating tank can be used as a liquid storage tank, mixing tank, temporary storage tank, etc.

It is suitable for industries including food, dairy products, fruit juice beverages, pharmaceuticals, chemical industry, bioengineering and other sectors.

PRODUCT DESCRIPTION

Description

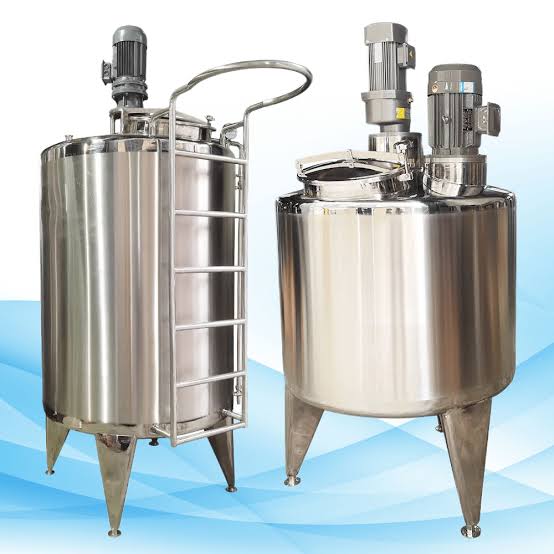

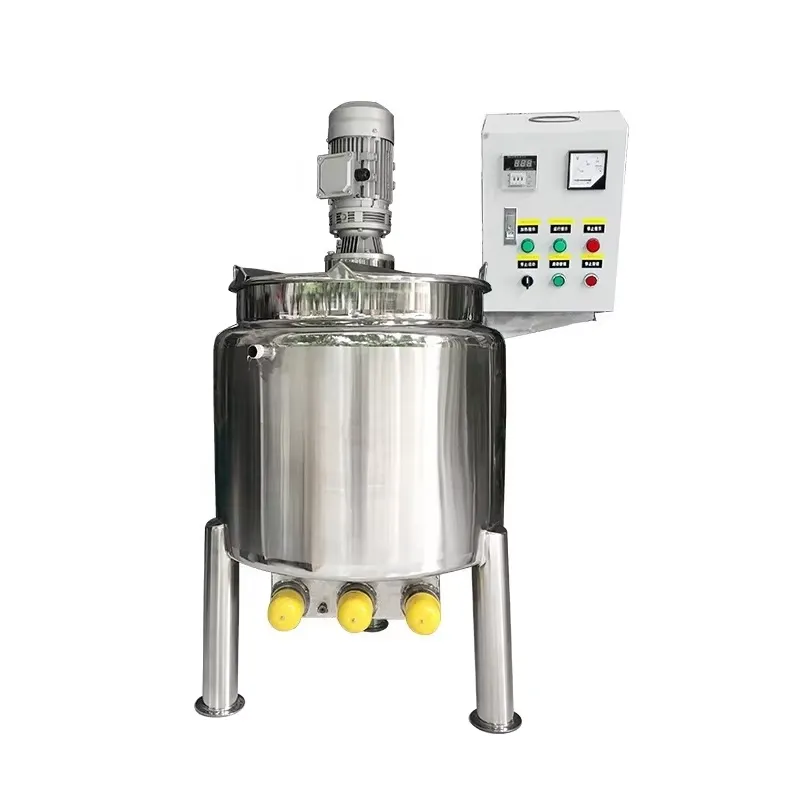

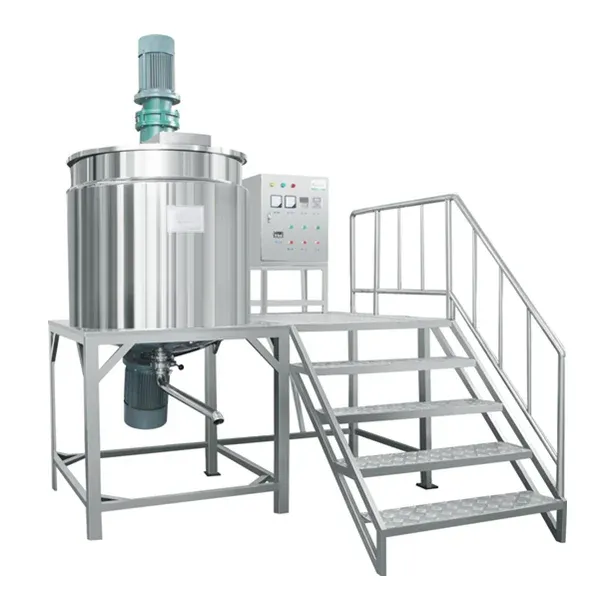

Stainless-steel sanitary steam-electric heating & cooling double-jacketed aging fermentation reactor, stirring balance buffer fermenter and storage tank

Application

It can be used as liquid storage tank, mixing tank, heating tank, cooling tank, etc. Suitable for food, dairy production, fruit juice & beverage, pharmaceutical, chemical industry, bio-engineering and other fields.

Working Principle

The stainless-steel sanitary mixing tank evenly blends liquids by means of an internal agitator. Upon startup, the motor drives the agitator to generate a flow pattern for thorough blending of mixtures. Baffles inside the tank break circular flow and improve mixing efficiency. Depending on applications, the tank can be equipped with temperature and pressure controls to support heating, cooling or vacuum processes. This guarantees uniformity of ingredients and sanitary conditions for each batch.

Capacity: 50L-10,000L Surface finish: Ra ≤ 0.6 μm (inner surface)

Agitator type: Top-mounted / Bottom-mounted / Magnetic type

Stirring speed: 10-300 rpm (adjustable)

Temperature range: -10°C ~ 150°C

Pressure: Atmospheric / Vacuum / Pressurized (≤0.3 MPa)

Jacket type: Single-layer / Double-layer / Coil jacket

Standards: 3A, FDA, GMP

Technical Parameters and Specification

Type: Vertical, Horizontal Layer: Single-layer, Double-layer

Jacket Type: Corrugated pipe jacket, coil jacket, full-wrap jacket. The jacket can be circulated with steam (or hot water) for heating, or cooling water for cooling.

Insulation: With insulation layer / Without insulation layer

Insulation material: Rock wool, polyurethane foam

Motor: Chinese brand, European brand and other optional brands

Motor speed: Fixed speed or adjustable speed

Motor mounting position: Bottom magnetic stirrer, side-mounted stirrer, top-mounted stirrer

Plate thickness: Minimum 3 mm (custom-made as per requirements)

Working pressure: Atmospheric pressure or pressurized (Chinese pressure-vessel certificate provided)

Working temperature: -4°C ~ +150°C

Tank nozzles: Manhole, feed port, discharge port, spray ball, exhaust port, spare port, etc.

Connection type: Tri-clamp, SMS fittings, flange, etc.

Surface treatment: Sanitary finish, dead-zone-free design.

Material: Constructed entirely of SUS304 or SUS316L Stainless steel. Inner surface polishing: Ra ≤ 0.4 μm; outer surface polished, complying with GMP standards.

Warranty: 1-year warranty upon equipment acceptance, plus lifelong after-sales service.

Installation & commissioning: Professional engineers can be dispatched for on-site installation and commissioning.

Maintenance service: We will respond promptly to your inquiries for any breakdown, except under special circumstances.

Inspection: Third-party inspection or customer self-inspection is available prior to shipment.

Documentation: User manual, maintenance manual, equipment test report and other documents supplied.

Product Highlights

1. Multi-functional Design Suitable for mixing, heating, reaction and emulsification of chemicals, shampoo, soap and other materials to meet diverse production requirements.

2. Efficient Double-jacket Heating The double-layer jacket supports steam or hot-oil circulation, delivering uniform heating and precise temperature control for sensitive processes.

3. Powerful Mixing Performance Equipped with customizable agitators (paddle type, anchor type, etc.), it provides strong shearing force and homogeneous mixing even for high-viscosity or fragile materials.

4. Food-grade Stainless Steel Construction Fabricated from SUS304 / SUS316L stainless steel, corrosion-resistant and easy-to-clean, complying with hygiene and safety standards for chemical, cosmetic and food industries.

5. Leak-proof Sealing Structure Mechanical seal or magnetic drive options prevent leakage, ideal for volatile chemicals and high-standard processing media.

6. Optional Automatic Control Compatible with PLC systems for automatic adjustment and recording of temperature, speed and time, ensuring stable and efficient production processes.

7. Robust & Durable Build Built with premium welding and pressure-resistant design for continuous, large-scale industrial operation.

8. Easy Cleaning & Maintenance CIP Cleaning System is available for fast and thorough cleaning, reducing downtime and satisfying strict sanitary requirements between batches.

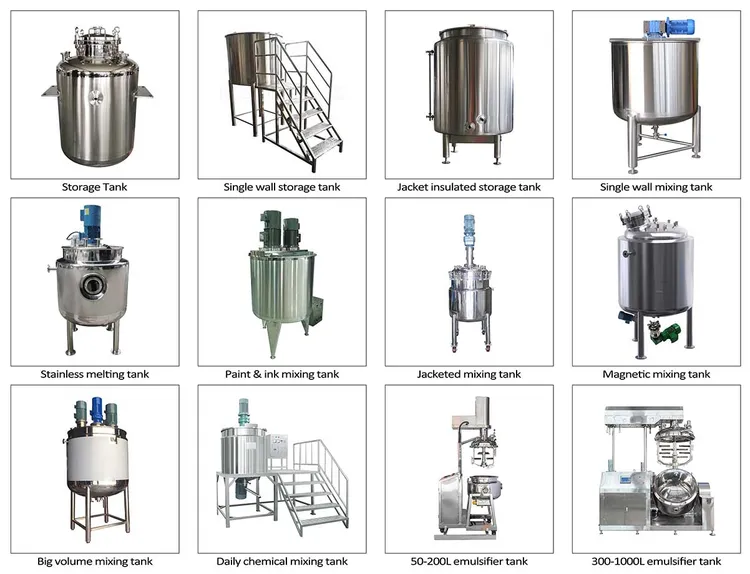

Related Products Display
