Horizontal Bright Beer Storage & Maturation Tanks
Horizontal Bright Beer Tanks feature horizontally oriented vessels, suitable for workshops with limited ceiling height. For the same volume, they occupy a larger floor area yet have a low tank body, facilitating easier installation. Equipped with glycol cooling jackets and pressure-bearing design, they are used for low-temperature maturation, clarification, carbonation and pre-packaging storage of beer.
PRODUCT DESCRIPTION
Description

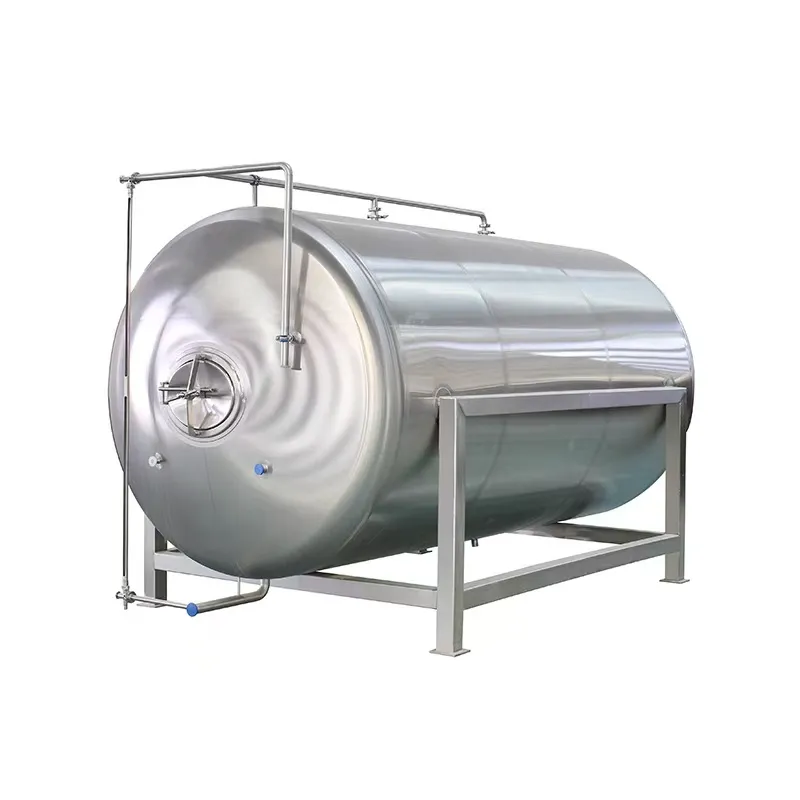

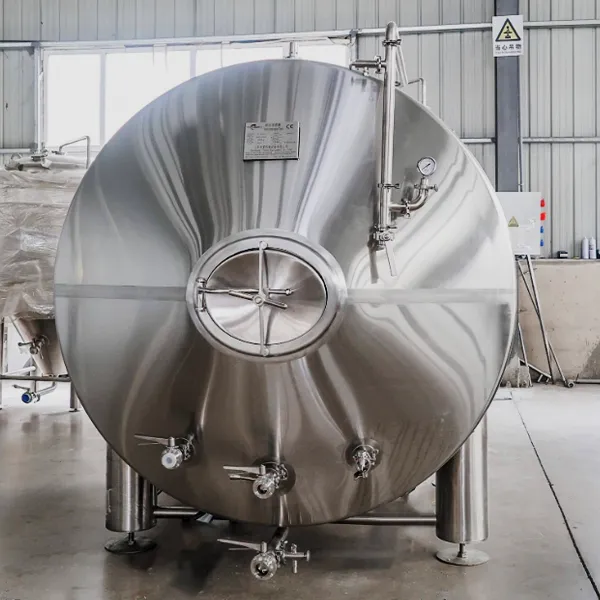

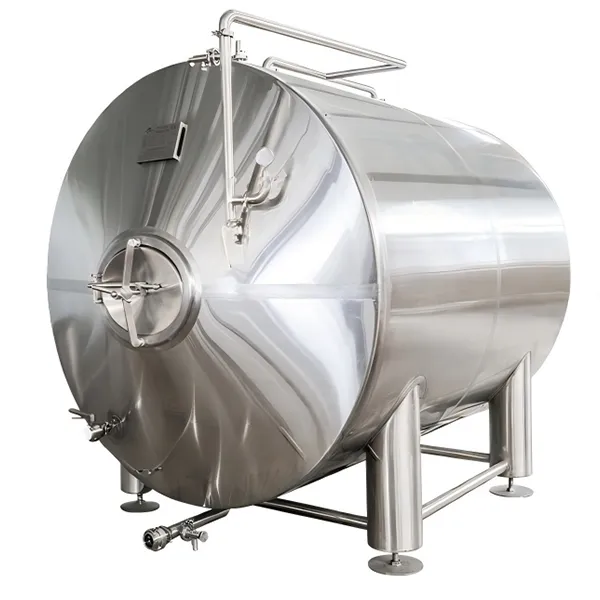

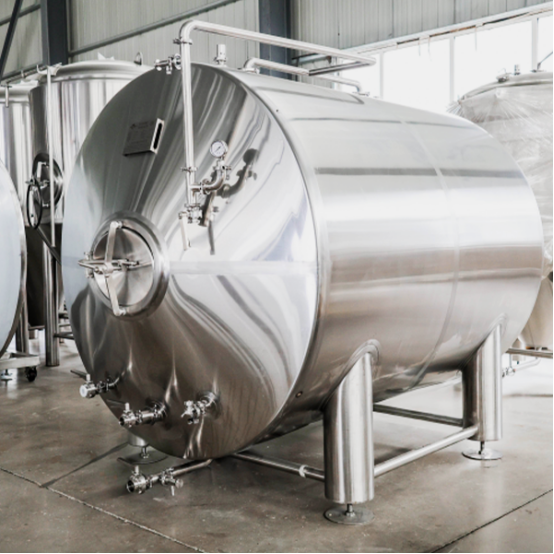

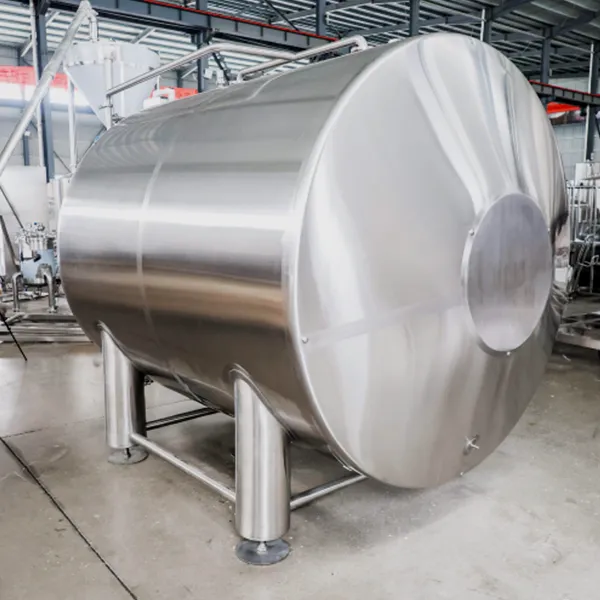

A Horizontal Bright Beer Tank (Horizontal BBT) is a pressure-bearing food-grade Stainless steel tank installed horizontally with glycol cooling jacket, which is key equipment before beer packaging.
Its tank body is placed horizontally with low overall height, ideal for breweries with limited workshop ceiling height. Compared with vertical tanks of the same volume, it requires larger floor space yet is easier to install. With 304/316L sanitary stainless steel inner vessel and pressure-resistant structure, it is fitted with glycol cooling jacket, CO₂ port, sampling port, safety valve, CIP spray ball and other fittings.
Fermented beer is pumped into this tank for low-pressure maturation under controlled low temperature. Yeast and sediments settle down to clarify beer, while carbon dioxide is dissolved for carbonation to stabilize flavor. It serves as buffer storage before bottling or kegging.
Core Structure
Horizontal inner vessel: Food grade 304/316L stainless steel, in direct contact with beer.
Cooling jacket: Glycol cooling jacket for low temperature maturation and storage.

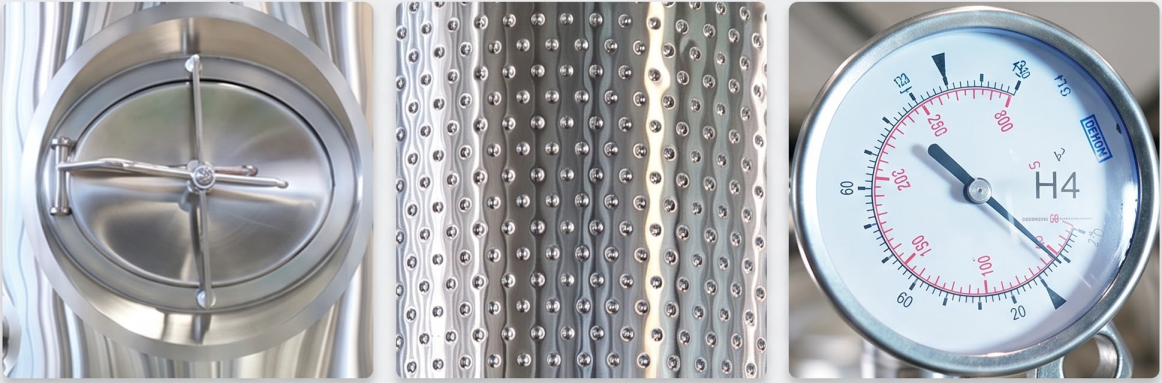

Fittings: CO₂ inlet, sampling port, pressure gauge, safety relief valve, CIP spray ball.
Optional: Sight glass, manhole, level sensor.
Functions
· Low-temperature maturation & clarification
· Beer carbonation
· Pressurized buffer storage
Applicable Industries
Craft breweries, commercial breweries, brewpubs
Simplified Working Flow
Fermented beer transferred into horizontal bright tank → Cooled by glycol jacket → Low-temperature maturation, sedimentation and carbonation →
CO₂ pressurized storage → Discharge to bottling/kegging line.
Related Products
FAQ
Q: How about payment term, payment safety and delivery time?
A: We accept 40% deposit, balance before shipment. And Irrevocable L/C at sight.Delivery time is 7 to 30 days. It is according to order quantity.
Q: How could we confirm the products?
A: Our professional engineers will follow up all the designs and ajustments according to your requirement.OEM and ODM available.
Q: What services can we provide?
A:Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Cardl,Western Union,Alipay;
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: What's your MOQ?
A: 1 set.
Bright Wine Tank: Complete SEO Guide for Modern Winery Storage, Clarification & Conditioning Systems
Introduction
Horizontal Bright Beer Tanks, commonly referred to as BBTs, are essential storage vessels used in modern craft breweries for the fermentation, maturation, and conditioning of beer. Available in various capacities such as 1000L, 2000L, 3000L, and 5000L, these tanks are designed to provide efficient storage, optimal temperature control, and high-quality beer production.
BBTs are widely favored in both small craft breweries and large industrial setups due to their versatility and reliability. Unlike vertical fermenters, horizontal bright beer tanks offer enhanced contact between beer and cooling surfaces, ensuring uniform temperature distribution and consistent carbonation levels.
Key Benefits of Horizontal BBTs:
·
Precise temperature control for beer maturation
·
·
Enhanced carbonation retention
·
·
Efficient use of brewery floor space
·
·
Easy cleaning and maintenance due to sanitary design
·
·
Suitable for a wide range of beer styles, including ales, lagers, stouts, and IPAs
·
2. Craft Beer Unitank: Definition and Purpose
A Craft Beer Unitank is a multi-functional vessel that can serve as both a fermentation tank and a bright beer storage tank. The unitank concept simplifies brewery operations by combining fermentation and maturation in a single tank. This reduces the need for multiple vessels, minimizes beer transfer, and preserves beer quality.
Horizontal unitanks are particularly effective for:
·
Bright beer conditioning before packaging
·
·
Carbonation through CO₂ injection
·
·
Cold storage of finished beer
·
·
Monitoring beer clarity and quality
·
Applications in Craft Breweries:
·
Small to medium-sized craft breweries
·
·
Pilot brewing systems for new recipes
·
·
Large-scale breweries requiring flexible storage solutions
·
3. Advantages of Horizontal Bright Beer Tanks (BBT)
Advantage | Description |
Uniform Temperature | Horizontal design ensures consistent cooling and optimal maturation. |
Efficient Space Utilization | Horizontal layout allows better floor space management in breweries. |
Sanitary Design | Stainless steel construction meets hygiene standards; easy to clean. |
Reduced Oxidation | Minimizes beer transfer and oxygen exposure, preserving flavor. |
Multi-functional | Can serve as fermenter, bright beer tank, or storage vessel. |
Scalable Capacities | Available in 1000L, 2000L, 3000L, 5000L to meet brewery needs. |
Enhanced Carbonation Control | Integrated pressure control allows precise CO₂ management. |
Durable Construction | High-quality stainless steel resists corrosion and long-term wear. |
Improved Process Efficiency | Reduces handling and accelerates brewery production cycles. |
Visual Monitoring | Sight glasses and pressure gauges facilitate quality control. |
4. Construction and Materials
Horizontal BBTs are typically constructed using food-grade stainless steel (304 or 316L), which ensures hygiene, durability, and resistance to corrosion. The main components include:
·
Cylindrical body with horizontal orientation
·
·
Conical or rounded ends to facilitate sediment collection
·
·
Cooling jacket for precise temperature control
·
·
Pressure relief valve and CO₂ injection port
·
·
Sanitary valves for beer transfer and sampling
·
Material Specifications:
Component | Material | Purpose |
Tank Body | Stainless Steel 304/316L | Durable, corrosion-resistant, hygienic |
Cooling Jacket | Stainless Steel 304 | Temperature control during maturation |
Seals & Gaskets | Food-grade Silicone | Prevent contamination, maintain pressure |
Valves | Stainless Steel 304 | Sanitary beer transfer |
Pressure Relief | Stainless Steel | Safety during CO₂ pressurization |
Sight Glass | Borosilicate Glass | Monitoring beer clarity and level |
5. Capacities and Dimensions
Horizontal BBTs are available in various capacities to suit different brewery scales. Standard capacities include 1000L, 2000L, 3000L, and 5000L. Dimensions may vary depending on manufacturer and customization options, but typical specifications are:
Capacity | Length (m) | Diameter (m) | Weight (kg) | Cooling Surface Area (m²) |
1000L | 2.0 | 0.8 | 150 | 2.0 |
2000L | 2.5 | 1.0 | 220 | 3.5 |
3000L | 3.2 | 1.1 | 300 | 4.8 |
5000L | 4.0 | 1.3 | 450 | 6.5 |
Note: These dimensions are typical; actual sizes may vary based on customization and brewery requirements.
6. Temperature and Pressure Control
Maintaining optimal temperature and pressure is crucial for beer quality. Horizontal BBTs feature:
·
Cooling Jackets or Glycol Coils: Circulate coolant to maintain desired maturation temperature.
·
·
Pressure Control Valves: Regulate CO₂ pressure for carbonation and prevent over-pressurization.
·
·
Thermometers and Sensors: Monitor internal beer temperature for consistent conditioning.
·
Temperature Recommendations:
Beer Type | Fermentation Temp (°C) | Maturation Temp (°C) |
Lager | 8–12 | 0–4 |
Ale | 18–22 | 2–6 |
Stout | 18–20 | 2–5 |
IPA | 18–21 | 2–4 |
7. Sanitation and Cleaning
Sanitation is vital in beer production. Horizontal BBTs are designed for CIP (Clean-In-Place), allowing automated cleaning without dismantling. Features include:
·
Spray balls for thorough cleaning
·
·
Smooth internal surfaces to reduce sediment build-up
·
·
Sanitary valves to prevent contamination
·
·
Compatibility with standard brewery cleaning agents
·
8. Installation and Operation Guidelines
·
Floor Space: Ensure level, reinforced flooring to support tank weight when full.
·
·
Temperature Control: Connect cooling system properly; monitor glycol or chilled water flow.
·
·
Pressure Management: Install and test safety relief valves; maintain target CO₂ levels.
·
·
Beer Transfer: Use sanitary hoses and valves; avoid splashing to reduce oxidation.
·
·
Routine Maintenance: Inspect gaskets, valves, and cooling jackets; schedule periodic cleaning.
·
9. Applications in Craft Breweries
Horizontal BBTs are versatile and widely used in:
·
Craft beer maturation before bottling or kegging
·
·
Fermentation of various beer styles
·
·
Pilot brewing for recipe development
·
·
Seasonal or specialty beer production
·
·
Large breweries seeking flexible storage solutions
·
10. Comparison of Horizontal vs Vertical BBTs
Feature | Horizontal BBT | Vertical BBT |
Floor Space | Optimized for low height areas | Requires taller ceiling |
Cooling Efficiency | Uniform due to horizontal design | Can be uneven in taller tanks |
Sediment Management | Conical ends improve sediment removal | May require additional racking |
Beer Transfer | Minimal oxidation, easier sampling | Higher risk of oxidation during transfer |
Cleaning | CIP-friendly | CIP possible, but may require additional spray balls |
Versatility | Multi-functional (fermentation + maturation) | Often single-purpose |
11. Common Accessories
·
CO₂ Injection Port for carbonation
·
·
Pressure Gauge and Relief Valve for safety
·
·
Sampling Valve for quality checks
·
·
Sight Glass for monitoring
·
·
Glycol or Cooling Jacket for precise temperature
·
·
CIP Spray Balls for automated cleaning
·
12. Key Considerations for Selection
00001.
Capacity Needs: Determine brewery scale (1000L–5000L).
00002.
00003.
Beer Style: Lagers vs ales may require different temperature control.
00004.
00005.
Floor Space & Layout: Horizontal tanks optimize low-ceiling areas.
00006.
00007.
Sanitary Design: Ensure stainless steel grade and CIP compatibility.
00008.
00009.
Carbonation Control: Check pressure rating and CO₂ compatibility.
00010.
13. Conclusion
Horizontal Bright Beer Tanks (BBTs) in capacities ranging from 1000L to 5000L are essential for modern craft breweries. They provide efficient beer maturation, consistent quality, and versatile usage across fermentation, conditioning, and storage. With durable stainless steel construction, sanitary design, and precise temperature control, these tanks enhance brewery efficiency while ensuring high-quality Craft beer production.
