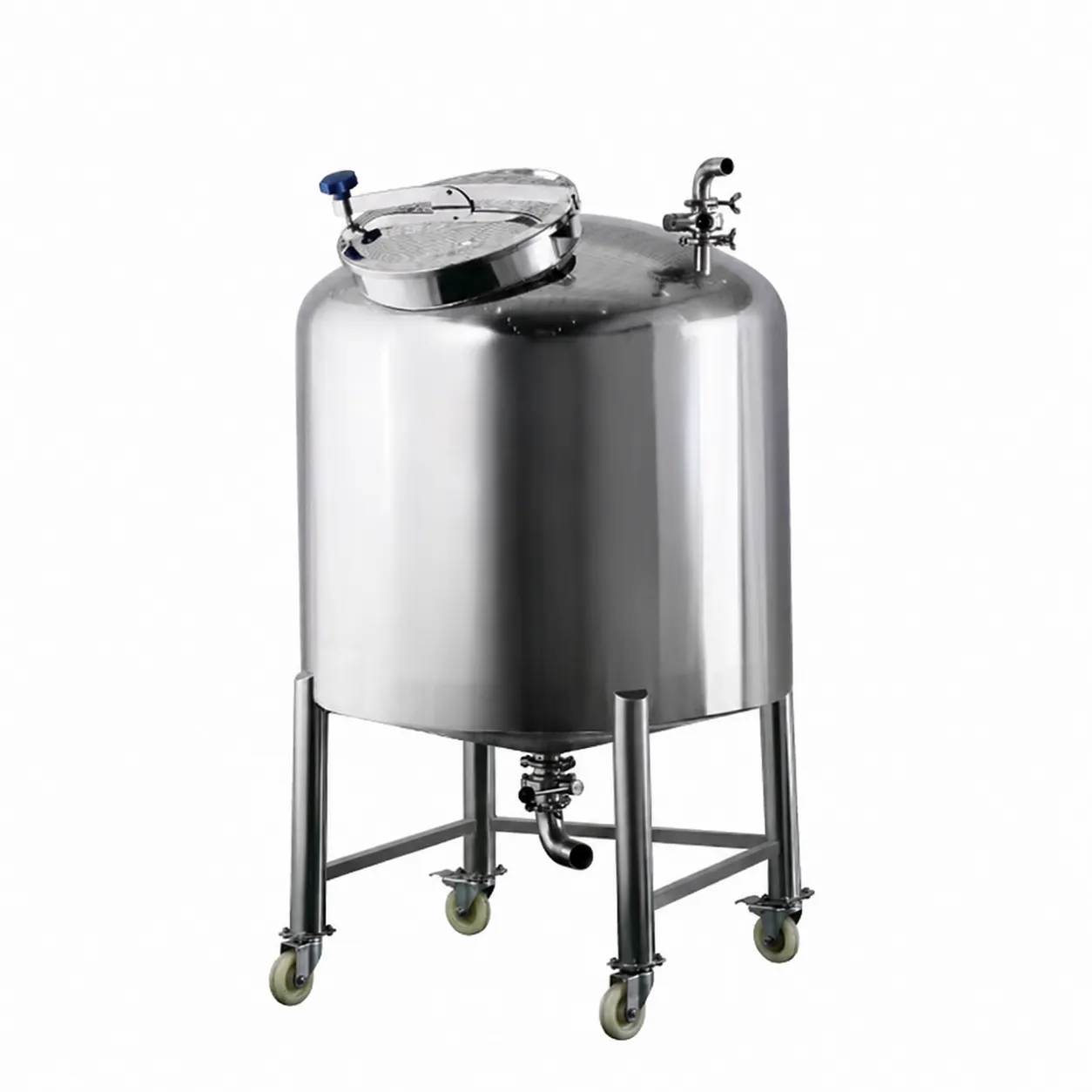

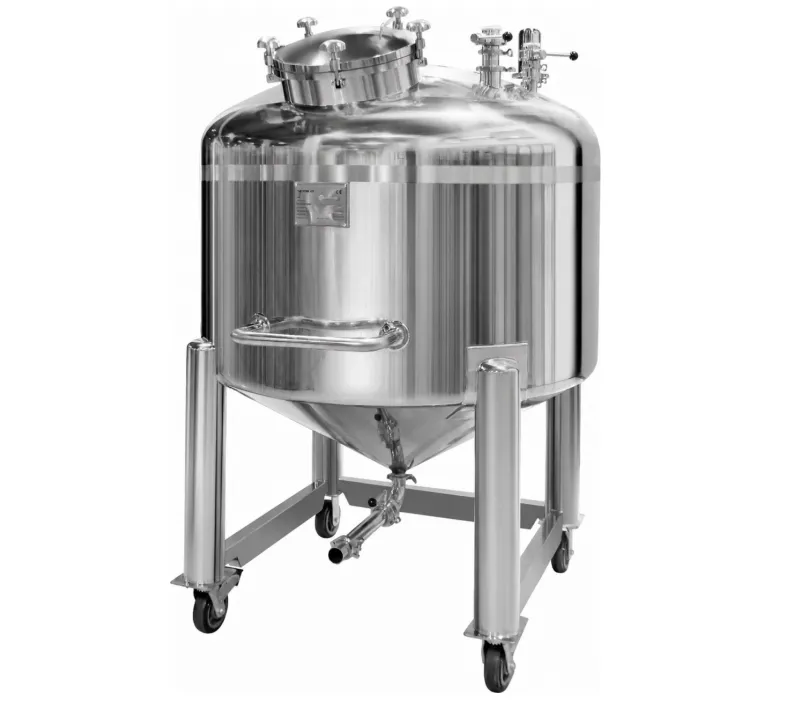

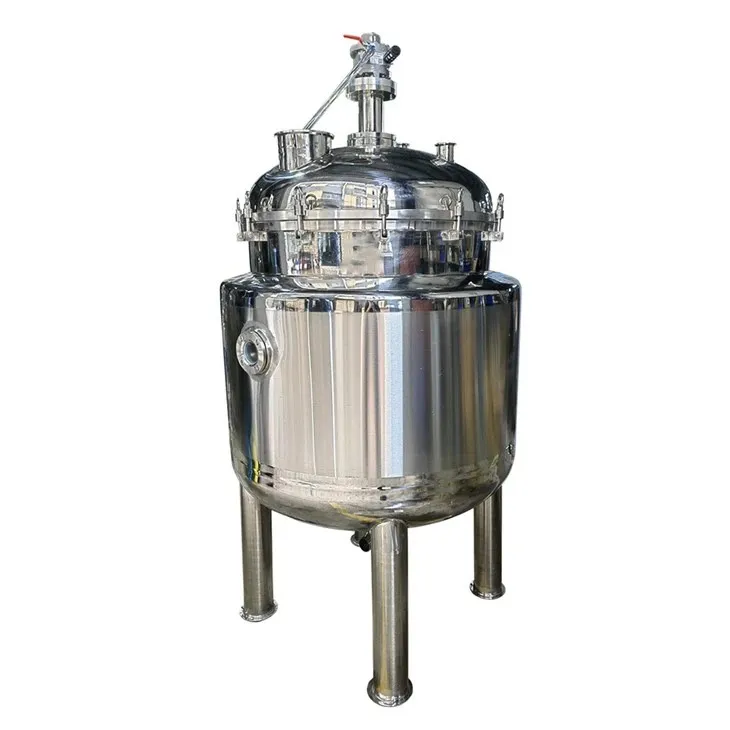

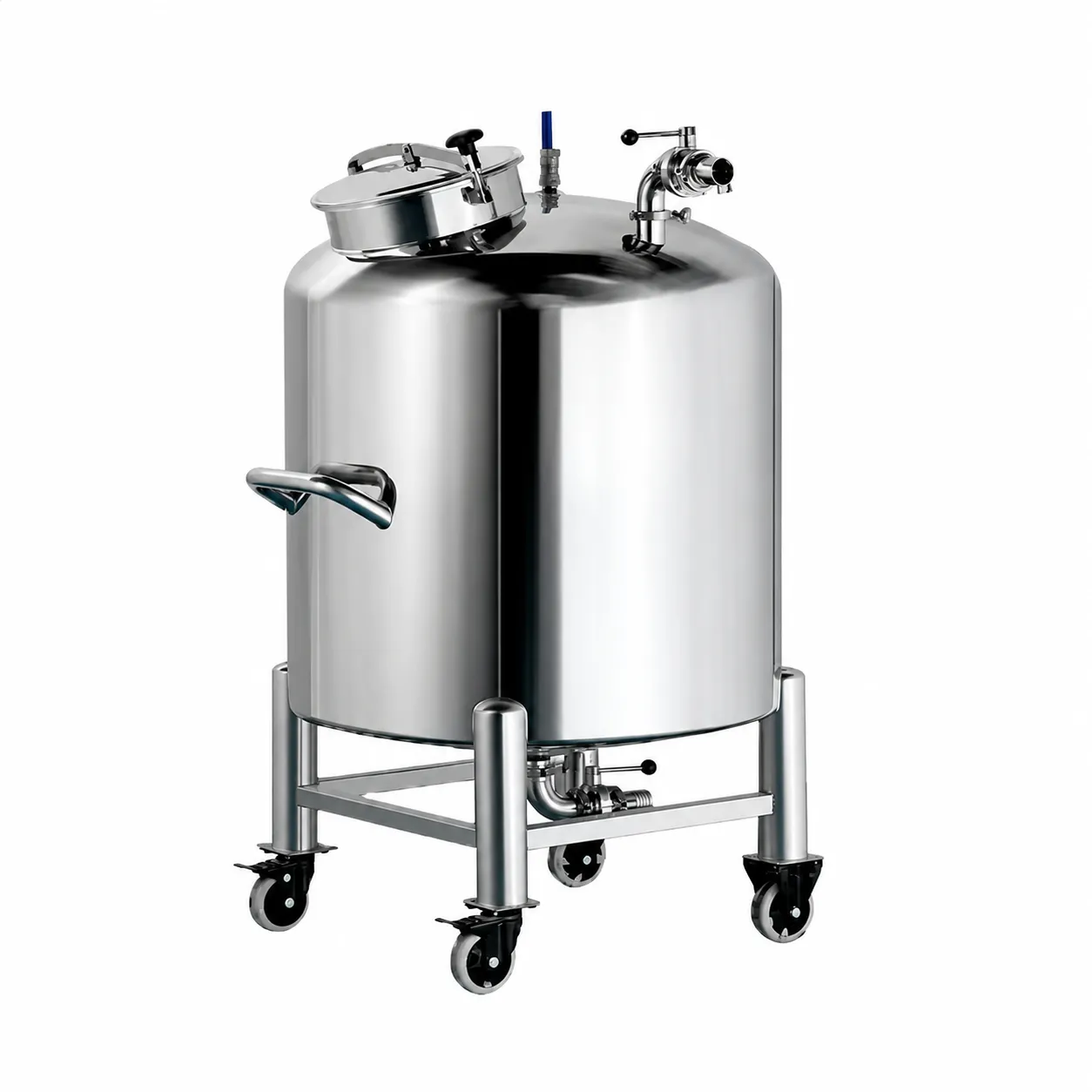

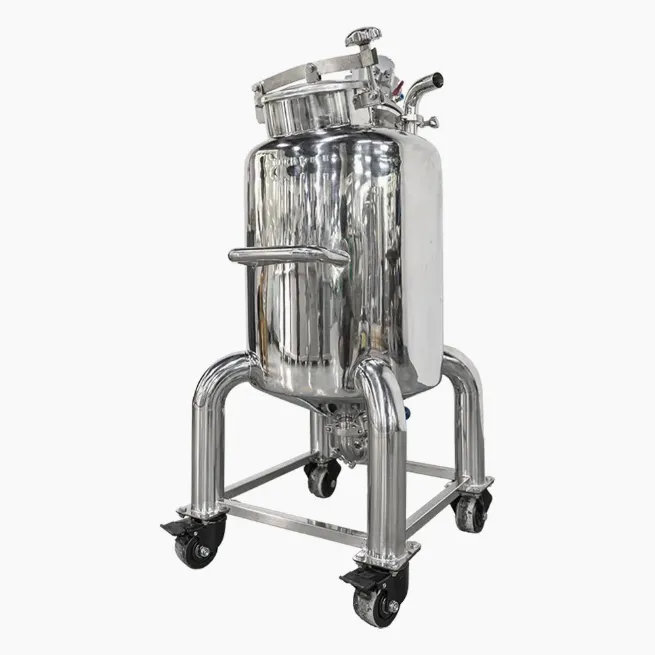

100L 200L 300L 500L Stainless steel Pneumatic Mixing Tank for Perfume Alcohol Making Mixing Stirring Pot
| Model NO. | ALT-PF1501 |
| Application | Granules, Liquid, Liquid with Suspended Solids, Powder, Viscous Fluid |
| Application Area | Agricultural Chemicals, Chemical, Daily Chemical, Engineering & Construction, Food, Metallurgy&Mineral, Pharmaceutical |
| Certification | CCC, CE, GOST, ISO, SONCAP |
| Condition | New |
| Cooling Method | Air Cooling |
| Heating Method | Electric Heating |
| Insulation Material | Fiberglass |
| Main Material | Alloy Steel, Aluminum, Carbon Steel, Cast Iron, Stainless Steel |
| Mixing Capacity | 1000L & Above |
| Mixing Drum Shape | Circular Groove |
| Stirring Type | Diving |
| Working | Convection Mixer |
| Agitator Tank | Support Customization of Size |
| Mixing Tank | Support Customized Processing |
| Stainless Steel Tank | Can Be Customized According to The Drawings |
| Stirring Function | Support |
| Transport Package | Check The Requirements |
| Specification | Support customization options |
| Origin | Yangling, China |
| Production Capacity | 50000 |
The mixer is designed with an integrated frame, which is sturdy and durable.
The propeller of the mixer is processed after welding, with high concentricity and easy turning operation.
The mixer tank can be fully stirred using a vortex type, making the mixing time shorter.
The mixer is made of stainless steel, ensuring easy cleaning and rust resistance.
The mixer is suitable for various plastic materials, feed, powder, and chemical industries.
Material | 304 or 316 Stainless steel | ||||||||
Insulation | Single layer or with insulation | ||||||||
Top Head type | Dish top, Open lid top, Flat top | ||||||||
Bottom type | Dish bottom, Conical bottom, Flat bottom | ||||||||
Agitator type | impeller, Anchor , Turbine , High shear, magnetic mixer, Anchor mixer with scraper | ||||||||
magnetic mixer, Anchor mixer with scraper | |||||||||
Inside Finsh | Mirror polished Ra<0.4um | ||||||||
Outside Finish | 2B or Satin Finish | ||||||||
Volume | 300L | 400L | 500L | 600L | 800L | 1000L | 1500L | 2000L | 3000L |
Body diameter(mm) | Φ800 | Φ800 | Φ900 | Φ1000 | Φ1000 | Φ1000 | Φ1200 | Φ1300 | Φ1600 |
Body height(mm) | 600 | 800 | 800 | 800 | 1000 | 1220 | 1220 | 1500 | 1500 |
Motor power(KW) | 0.55 | 0.55 | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 2.2 | 3 |
Stirring speed (rpm) | 36r/min | ||||||||
Working pressure | ≤0.09Mpa | ||||||||
Working Temperature | <100°C | ||||||||
Accessories | Sanitary manhole,cleaning ball,safety valve,pressure gauge | ||||||||
Mixing tank : 1. The container is made of high temperature insulation material, anti-aging polyurethane foam or EPE. 2. The interface adopts international standard ISO fast chuck, and the inner liner is made of imported stainless steel SUS316L or SUS304. The inner surface of the mirror is polished to Ra ≤ 0.4m, and the outer surface is cast matte, glossy, matte sandblasted or cold colored. 3. The mixer seal adopts imported sanitary grade mechanical seal or magnetic stirring seal mixing device, and the mixing speed is optional. 4. Nozzles include Level sensor ports (static pressure, capacitive, non-contact, ultrasonic, glass tube), breathing air ports, thermometers (digital display or dial type), CIP cleaning ports, mirrors, depending on the light, depending on the light (such as endoscope light integration), SIP sterilization ports, liquid outlets and sanitary manholes.
Suitable for industries such as food, dairy, beverages, pharmaceuticals, cosmetics, etc.a. Chemical industry: fats, solvents, resins, paints, pigments, oil agents, etc.b. Food industry: yogurt, ice cream, cheese, soft drinks, jelly, tomato sauce, oil, syrup, chocolate, etc.c. Daily chemical products: facial foam, hair gel, hair dye, toothpaste, shampoo, shoe polish, etc.d. Medications: nutrient solution, traditional Chinese patent medicines and simple preparations, biological products, etc.
500L Pneumatic Mixing Blending Tank – Complete Industrial Guide for Design, Applications, and Specifications
The 500L Pneumatic Mixing Blending Tank is a medium-capacity industrial mixing system designed for efficient blending, homogenization, and dispersion of liquid and semi-liquid materials. It uses a pneumatic (air-driven) motor system to operate the agitator instead of an electric motor, making it suitable for environments where safety, hygiene, and explosion-proof performance are critical.
This type of tank is widely applied in food processing, beverage manufacturing, pharmaceuticals, cosmetics, chemical production, and biotechnology industries. With a 500-liter working capacity, it is ideal for pilot production, medium-scale batch processing, and industrial formulation systems.
Its biggest advantage is the combination of safe pneumatic operation + Stainless steel hygienic construction + flexible mixing performance, making it a highly reliable solution for modern industrial production lines.

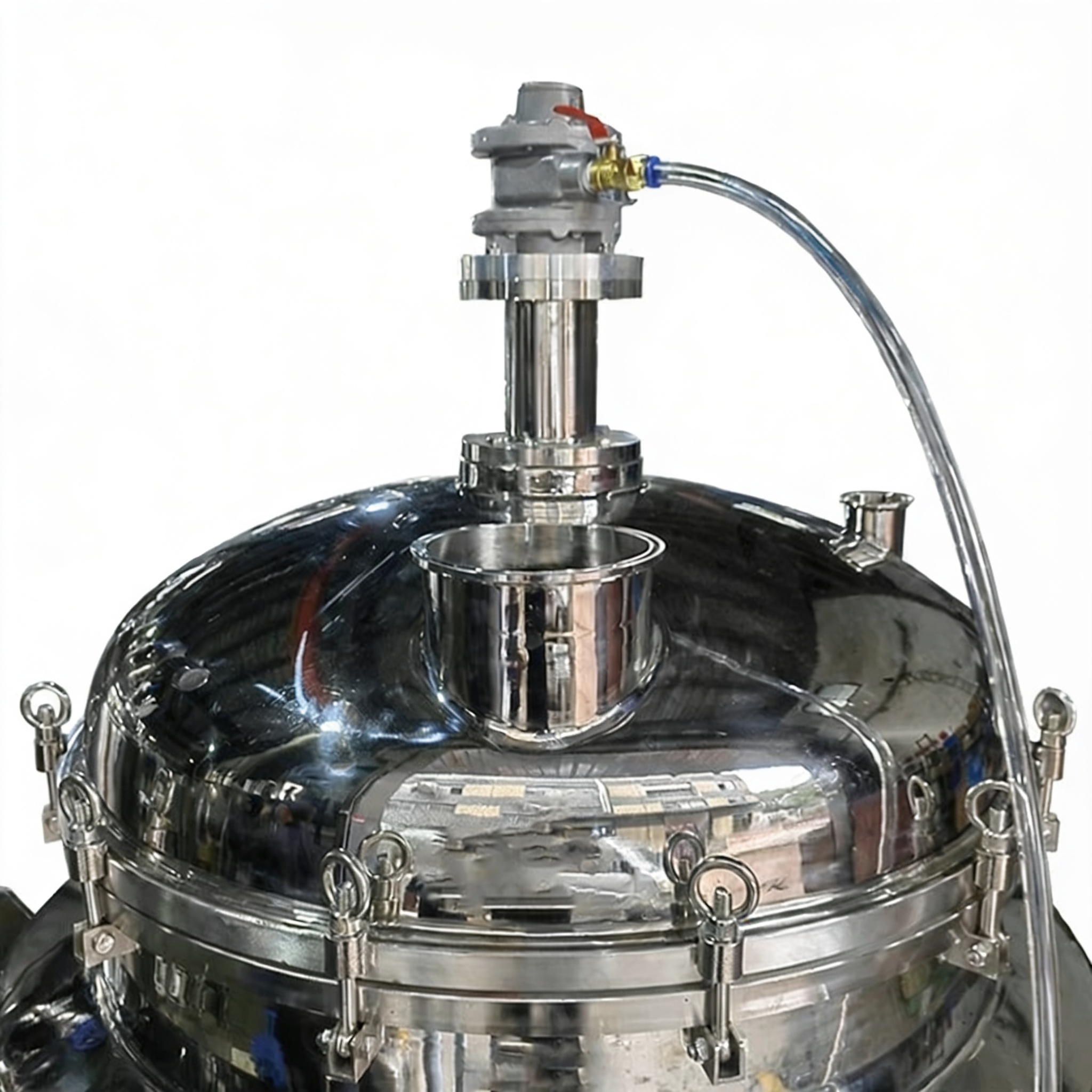

A pneumatic mixing blending tank is an industrial vessel that uses compressed air as its energy source to drive a mixing impeller. Instead of an electric motor, an air motor converts compressed air into mechanical rotation, which then drives the agitator shaft.
A 500L Pneumatic Mixing Blending Tank is a 500-liter stainless steel container equipped with an air-powered agitator system for industrial mixing and blending applications.
Air-driven mixing system
Explosion-proof operation
Stainless steel tank body
Adjustable mixing speed
Suitable for hygienic and chemical processes
The working mechanism is based on compressed air energy conversion.
Compressed air is supplied from an external air compressor
Air enters the pneumatic motor
Internal rotor converts air pressure into rotational energy
Shaft transfers rotation to the impeller
Material inside the tank is mixed and homogenized
Exhaust air is released safely
No electrical spark generation in the mixing zone, making it ideal for flammable or explosive environments.
| Component | Function |
|---|---|
| Tank Body | Holds and processes materials |
| Pneumatic Motor | Drives mixing system using air pressure |
| Agitator Shaft | Transfers rotation to impeller |
| Impeller Blade | Performs mixing and blending |
| Control Valve | Regulates air flow and speed |
| Inlet Port | Material feeding system |
| Outlet Valve | Discharge system |
| Frame Structure | Mechanical support |
| Pressure Gauge | Monitors air system |
| Item | Specification |
|---|---|
| Capacity | 500 Liters |
| Material | SS304 / SS316L |
| Mixing System | Pneumatic Air Motor |
| Pressure Range | 0.4 – 0.8 MPa |
| Surface Finish | Mirror Polish / Matte |
| Mixing Speed | Adjustable |
| Temperature Range | -10°C to 150°C |
| Installation Type | Vertical / Skid Mounted |
| Cleaning System | Optional CIP/SIP |
| Discharge Method | Bottom valve |
The tank supports different mixing mechanisms depending on product requirements.
Used for low-viscosity liquids
Fast circulation
Beverage and water-based solutions
Strong shear force
Emulsification processes
High-speed dispersion
Chemical blending
Thick materials
Controlled blending of viscous substances
| Impeller Type | Application |
|---|---|
| Propeller | Low viscosity liquids |
| Anchor | High viscosity materials |
| Turbine | Emulsification |
| High Shear | Fine particle mixing |
| Helical | Thick paste blending |
No electrical motor is required, ensuring safe operation in hazardous environments.
Corrosion-resistant and suitable for food-grade and pharmaceutical use.
Air flow valve allows flexible mixing speed adjustment.
Smooth inner surface prevents material buildup.
Uses compressed air instead of high electricity consumption.
Explosion-proof design
Stable and uniform mixing
Low maintenance requirements
High safety performance
Flexible industrial applications
Suitable for batch production
Easy cleaning and sterilization
Sauce mixing
Beverage blending
Syrup preparation
Dairy processing
Liquid medicine mixing
Syrup formulation
Chemical suspension preparation
Lotion production
Shampoo blending
Cream emulsification
Detergent production
Industrial solution mixing
Adhesives and coatings
Culture media
Enzyme solutions
| Grade | Usage |
|---|---|
| SS304 | Food & general industry |
| SS316L | Pharmaceutical & chemical |
Mirror polish (high hygiene)
Matte finish (industrial use)
Electro-polished surface (pharma grade)
Most common configuration, space-saving and efficient.
Integrated processing unit with pipelines and controls.
Allows heating or cooling during mixing.
Depending on contamination control requirements.
Automated cleaning without disassembly.
High-temperature sterilization for pharma use.
Reduced downtime
Improved hygiene
Consistent cleaning quality
Explosion-proof pneumatic system
Overpressure protection
Air flow regulation valve
Emergency shutdown system
Anti-corrosion structure
Stable compressed air supply
Level foundation
Ventilation system
Proper drainage system
Safe working environment
Impeller design
Air pressure stability
Material viscosity
Tank geometry
Faster mixing cycles
Better product uniformity
Reduced energy consumption
| Feature | Pneumatic | Electric |
|---|---|---|
| Safety | High | Medium |
| Energy Source | Air | Electricity |
| Maintenance | Low | Medium |
| Explosion Risk | None | Possible |
| Cost Efficiency | Medium | High long-term |
Check air pressure regularly
Lubricate pneumatic motor
Inspect seals and valves
Clean tank after each batch
Avoid dry running
Heating jacket system
Cooling jacket system
Load cell weighing system
PLC control system
Variable impeller design
Automated discharge system
Modern industrial mixing systems are moving toward:
Smart automation
Energy efficiency
Hygienic design standards
Modular production systems
Multi-functional tanks
The 500L Pneumatic Mixing Blending Tank fits these trends due to its flexibility and safety features.
Solution: Increase air pressure or adjust valve
Solution: Change impeller type
Solution: Check seals and connectors
With proper maintenance, the tank can operate efficiently for:
8–15 years in industrial environments
Longer in food-grade controlled systems
Reduced electricity usage
Lower carbon footprint
Efficient compressed air utilization
Sustainable production support
The 500L Pneumatic Mixing Blending Tank is a highly efficient, safe, and versatile industrial mixing solution. Its pneumatic operation system, stainless steel structure, and adaptable design make it suitable for a wide range of industries including food, pharmaceuticals, cosmetics, and chemicals.
With strong safety performance, flexible configuration options, and low maintenance requirements, it remains one of the most reliable choices for modern industrial mixing and blending applications.
